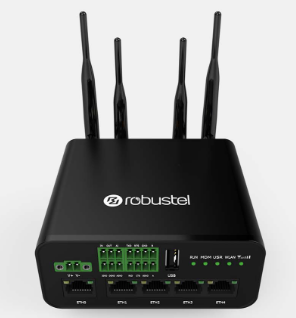

In this article we are connecting a Robustel R1520 Router to Nimbus MQTT solution platform.
Learn how to set up the Robustel R1520 Router to send/receive data over Nimbus808
Requirements:
- Robustel Robustel R1520 Router
- Nimbus808 Account
This guide assumes that you have internet access on your Robustel router, and have downloaded and installed the MQTT plugin from the E2C app store.
Robustel Configuration
- Navigate to the graphical user interface of the Robustel router
- Login with an Administrator account
Enabling MQTT
This guide assumes that you have downloaded the necessary MQTT plugin from the E2C app store and uploaded it to your Robustel router
- Navigate to Edge2Cloud tab
- Click E2C MQTT
- Enable MQTT under General Settings
- Enter in the following credentials:
- Hostname of Nimbus808 instance into Remote Server
- Port of Nimbus808 instance into Remote Port
Configuring MQTT’s Topic Settings
- Configure Robustel to send data to Nimbus808
- Enter in a topic into Publish Topic section
- Configure Robustel to receive data from Nimbus808
- Enter in a topic into Subscribe Topic section
Validate MQTT Connection
- Set a Birth Topic and a Birth Message
- Restart MQTT on the graphical user interface and observe Birth Topic’s message.
Feedback, suggestions, and related articles
Feel free to post questions or suggestions on our community portal, or contact us via email at support@nimbus808.com
