The Servers settings page lets authorized users add, stop, and view broker status, set/update security settings, and view webserver status.
MQTT Broker Status
- State: Indicates whether the Nimbus808 broker is running or not.
- URL: Provides a copyable link to the broker domain.
- Copy URL to clipboard
- TCP Port: Provides the broker port number.
- Copy Port to clipboard
Webserver Status
- State: Healthy
- URL: Provides the link to the broker runtime server.
- Copy URL to clipboard

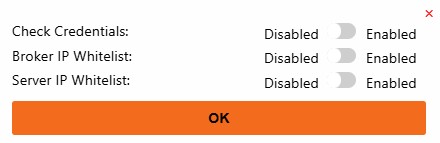

Security Settings
Click on the Security Settings button to set user names and passwords, manage Broker and Server IP Whitelists.
Check Credentials: Click to enable credentials. Add user and password information

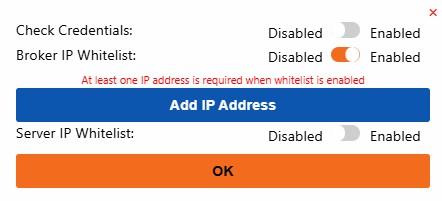

Broker IP Whitelist: Click to enable Broker IP Whitelist. Enter IP address, click OK to save.
Server IP Whitelist: Click to enable Server IP Whitelist. Enter IP address, click OK to save.
Stop (Start) Servers
The Stop Servers button lets authorized users stop (start) the current broker from the Nimbus808 dashboard. Stopping the server will stop data collection and device connections until the broker is restarted.
Refresh
Refreshes the broker connection.
